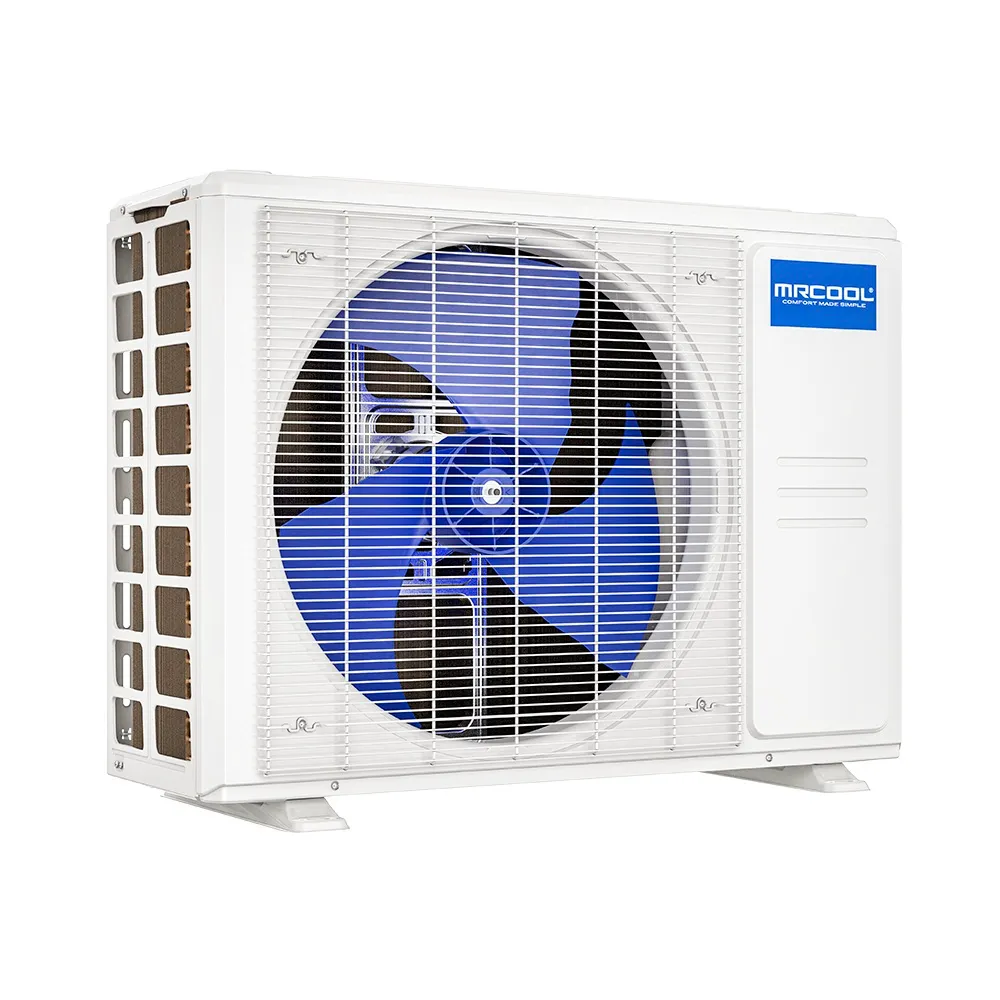

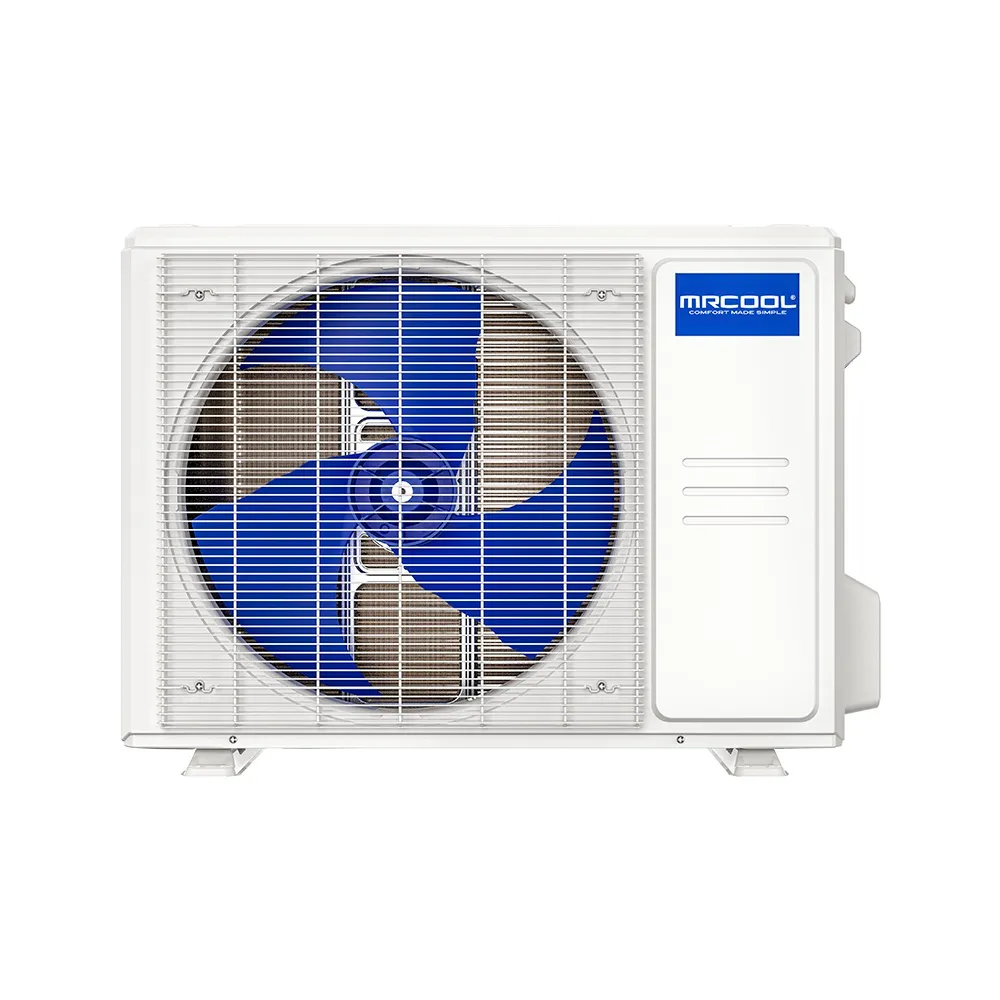

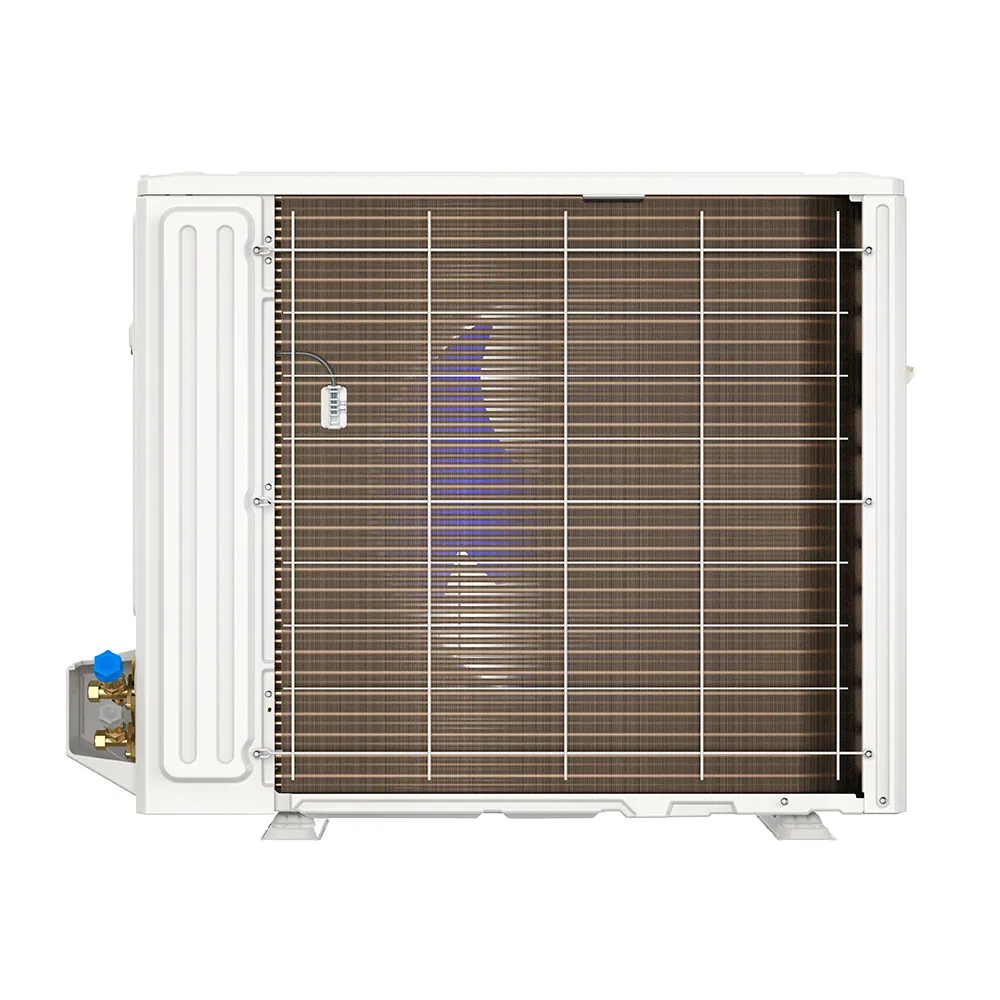

18K BTU Heat Pump Condenser
Original price was: $2,399.00.$1,978.00Current price is: $1,978.00.
Series: DIY 5th gen Single-Zone Mini-splits
Model: DIY-18-HP-C-230D25-O
MRCOOL® 18k DIY 5th Generation Mini-Split Condenser 230v
Introducing the new 5th Generation MRCOOL® DIY® 18K BTU 22.5 SEER Ductless Heat Pump Single Zone Mini Split Condenser, a game-changer for home climate control. Designed for straightforward installation, it requires no specialized tools or professional help, making it an excellent choice for spaces ranging from 500-750 sq. ft. The system includes a pre-charged 25-foot QuickConnect® line set filled with R-454B refrigerant, streamlining installation by eliminating the need for vacuuming. The DIYPRO® cable adds extra protection against weather, animals, and yardwork damage, replacing the need for traditional electrical conduit. Managing your home’s temperature has never been easier. You can adjust settings using the included remote, the SmartHVAC app for Apple and Android devices, or voice commands via Amazon Alexa and Google Assistant. The Gold Fin Condenser enhances durability, providing excellent corrosion resistance for coastal environments. Designed for efficiency and comfort, this system offers multiple features. The Timer function helps control energy use, while Auto mode maintains your preferred temperature without manual adjustments. After a power outage, the unit automatically restores previous settings, and the anti-mildew function prevents excess moisture buildup inside the air handler. Built for long-term reliability, the 5th Generation MRCOOL® DIY® Mini Split comes with an industry-leading warranty, featuring a limited lifetime warranty, plus 7 years on the compressor and 5 years on parts. With its innovative design, simple installation, and dependable performance, this system delivers hassle-free comfort for your home.
Feature List
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®’s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
| Color |
White |
|---|
Helping Hand offers FREE SHIPPING in the in the New Orleans Metro area only
We will send you tracking as soon as the order goes out!
To view our full shipping policy go here.Â
We offer a 30 day return policy. If 30 days have gone by since your items were delivered, unfortunately we can’t offer you a refund or exchange.
To view our full return policy go here.
| Specification | Value |
|---|---|
| SEER2 | 22.5 |
| EER2 | 13.7 |
| HSPF2-4 | 11.5 |
| HSPF2-5 | 8.5 |
| TONNAGE | 1.5 |
| COOLING CAPACITY (BTU) | 18000 |
| HEATING CAPACITY (BTU) | 18000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 20 |
| MIN CIRCUIT AMPACITY (A) | 18 |
| COLOR | White |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 44.8 |
| DECIBEL RATING (DBA) | 58.5 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 98.4 |
| LIQUID LINE SIZE | 1/4″ |
| SUCTION LINE SIZE | 1/2″ |
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY (Years) | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 13.46 |
| NET HEIGHT (IN) | 26.5 |
| NET WIDTH (IN) | 35.04 |
| NET WEIGHT (LBS) | 93.48 |
| GROSS DEPTH (IN) | 18.11 |
| GROSS HEIGHT (IN) | 29.53 |
| GROSS WIDTH (IN) | 40.55 |
| GROSS WEIGHT (LBS) | 114.2 |
