DIY Line Set -1/4″ x 3/8″ x 25′
Price range: $227.00 through $1,601.00
Series: DIY Line Set – R-454B
Model: DIY25-1438-O

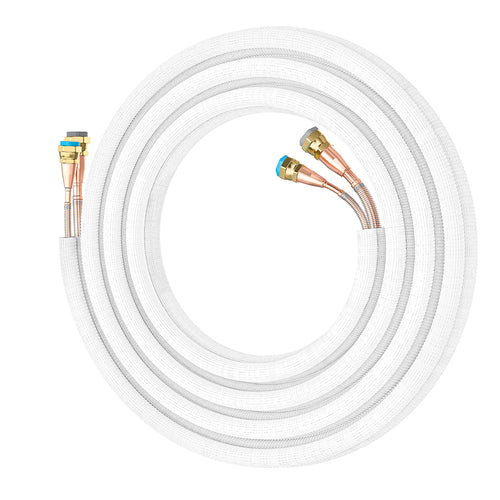

25ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor – R454B
The MRCOOL DIY Line Set is designed for installation of all MRCOOL DIY ductless mini splits. These linesets are compatible with the MRCOOL DIY 5th Gen Single Zone, MRCOOL DIY Multizone, and Central Ducted Mini Split Systems. The included 3/4 in. UV Protective Insulation Sleeve provides extra protection against sun damage, weather erosion or destruction from animals, etc.
If one DIY Ductless Split System Line Set isn’t long enough, you can combine two to three DIY Ductless Split System Line Sets together using a coupler to increase the desired length of the line sets (Up to 75ft).

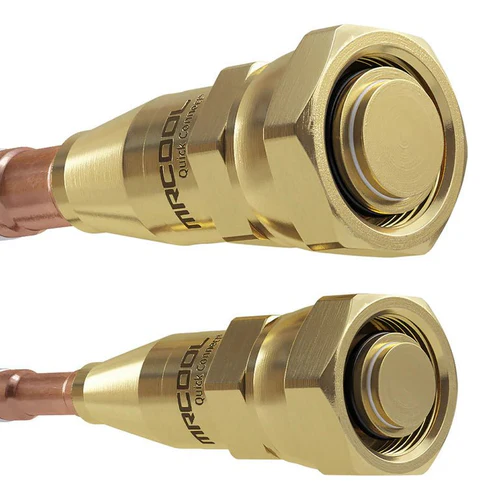

The line sets connect the condenser outside to the indoor air handler. The MRCOOL DIY Quick Connect Line Set is pre-loaded with an R-454B refrigerant. It uses Quick Connect Fittings that are specifically designed for installing both Mr. Cool DIY Single and Multi-Zone Split Systems.
Since these are No-Vac linesets, they easily plug into the outdoor condenser and Wall Air Handler inside. No cutting, brazing, vacuuming, or charging required.
They are also kink-resistant and made to be easy to bend during installation.
The linesets come in 16ft, 25ft, 35ft and 50ft options in one piece. The 35ft and 50ft linesets include a longer DIY Pro Cable communication wire in the box. The 75ft lineset consists of a 50ft + 25ft + coupler kit.
What’s Included:
- 75ft Vinyl Tape
- 1 Neoprene Clay
- 1 Wall Sleeve Cap
- 1 Wall Sleeve
- Condensation Drain Hose
- Line Set
- Zip Ties
| Color |
White |
|---|---|
| Air Handler Size |
6K (1/4" x 3/8") ,9K 12K or 18K (1/4" x 1/2") ,24K or 36K (3/8" x 5/8") |
| Length |
16 Ft ,25 Ft ,35 Ft ,50 Ft ,75 Ft |
Helping Hand offers FREE SHIPPING in the in the New Orleans Metro area only
We will send you tracking as soon as the order goes out!
To view our full shipping policy go here.Â
We offer a 30 day return policy. If 30 days have gone by since your items were delivered, unfortunately we can’t offer you a refund or exchange.
To view our full return policy go here.
| Specification | Value |
|---|---|
| Unit Type | Accessories |
| Equipment Type | R-454B Charged Line Set |
| Short Description | 25ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor - R454B |
| Color | White |
| Color Family | White |
| Refrigerant Type | R-454B |
| Refrigerant Volume (oz) | 2.12 |
| Line Set Length | 25 ft |
| Lineset Fitting Type | Quick-Connection |
| Liquid Line Size | 1/4 |
| Suction Line Size | 3/8 |
| Registered Warranty | N/A |
| Has Batteries | No |
| Contains Electronics | No |
| Contains Chemicals | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU; PR; VI |
| Net Weight (lbs) | 10.4 |
| Gross Depth (in) | 32.09 |
| Gross Height (in) | 4.92 |
| Gross Width (in) | 32.09 |
| Gross Weight (lbs) | 14.6 |
